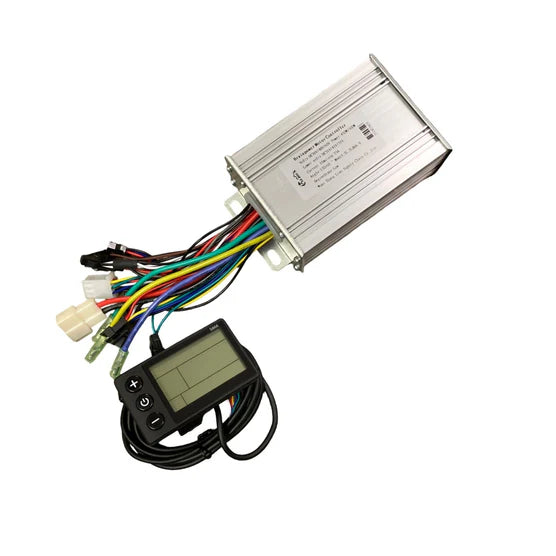

S866 Controller /Display Set

Controller:

• Central Control System:

  • The S866 Controller is the central processing unit that manages and regulates the various electrical components of the scooter or e-bike. It is responsible for controlling the motor, battery, acceleration, and braking systems.
  • It translates user inputs from the throttle and brakes into actions, ensuring smooth acceleration, deceleration, and braking.

• Motor Control:

  • The controller adjusts the power sent to the motor, allowing for smooth acceleration and variable speeds. It ensures the motor operates efficiently, balancing power demands with battery usage to extend the range of the vehicle.
  • It may allow for different riding modes (such as eco, normal, or sport modes) to control motor power, providing the rider with control over the performance of the vehicle.

• Battery Management:

  • The controller works in tandem with the battery management system (BMS) to monitor the battery’s health, charge level, and power consumption.
  • It ensures the battery is charged and discharged properly, preventing overcharging or deep discharge, which could damage the battery and reduce its lifespan.
  • The controller can also manage regenerative braking, where energy is sent back to the battery when the rider slows down.

• Safety Features:

  • The controller includes various safety features such as overcurrent protection, thermal protection, and voltage protection. These safeguards ensure the system operates within safe parameters, preventing damage to components and enhancing overall safety.
  • It may also include a motor cut-off function that prevents the motor from running in unsafe conditions.

• Communication with Display:

  • The controller communicates with the display unit to relay critical information to the rider, such as speed, battery charge, and motor performance.
  • It can also display fault codes or warnings if there’s an issue with the system, such as a low battery, motor malfunction, or overheating.

Display:

• User Interface:

  • The S866 Display is the interface through which the rider interacts with the electric vehicle. It shows real-time data about the vehicle’s performance, giving the rider insights into the current ride conditions.
  • The display typically shows:
    • Current Speed: Displays the speed of the vehicle.
    • Battery Level: Indicates the remaining battery charge, often with a visual representation (such as a battery icon or percentage).
    • Riding Mode: Shows the selected riding mode (e.g., eco, sport, or regular).
    • Trip Data: Displays distance traveled, ride time, or other metrics.
    • Error or Warning Codes: Alerts the rider to any issues with the scooter or e-bike, such as a malfunction in the motor, controller, or battery.

• Riding Mode Selection:

  • Riders can switch between different riding modes using the display or the controller buttons. These modes adjust the motor's power output, speed limits, and throttle sensitivity, allowing for different riding experiences based on terrain, rider preference, or battery conservation.
    • Eco Mode: Limits speed and power consumption, maximizing battery range.
    • Normal Mode: Standard riding mode for everyday use.
    • Sport Mode: Provides full motor power for faster speeds and more powerful acceleration.

• Control Functions:

  • The S866 Display may also include buttons for controlling power on/off, adjusting settings, and changing modes.
  • Some displays are touch-sensitive or have a combination of buttons to navigate through settings, such as trip data, motor control, and more.

• Backlit Display:

  • Many versions of the S866 Display are backlit, ensuring that the rider can easily read the data even in low-light conditions.

• App Integration (Optional):

  • In some systems, the display can be connected to a mobile app via Bluetooth. This allows for additional functionality, such as remote diagnostics, performance tracking, and custom settings. Through the app, riders can potentially adjust power settings or receive firmware updates for the system.

Package

1 x controller

1 x display with Line cable

Specifications

Volts : DC 36/48/60v ( Operates on multi volt )

Power : 450 W /500 W

Current Limit 25 A

Model SL866-9
